| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| AVK2292 | RIVNUT KIT WITH HAND INSTALLATION TOOL, Imperial | Includes 6-32, 8-32, 10-32, 1/4-20, 5/16-18 & 3/8-16 Thread Sizes | $250.00 | |
| AVK2293 | RIVNUT KIT WITH HAND INSTALLATION TOOL, Metric | Includes M4, M5, M6, M8 & M10 Thread sizes | $250.00 |
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| 302E | PNEUMATIC RIVETER | 2000 lbs Pulling Force, 3/32" to 3/16" Blind Rivets, 0.812" Stroke. Production Tool | $715.00 | |
| 304E | PNEUMATIC RIVETER | 4200 lbs Pulling Force, 3/16" to 1/4" Blind Rivets. 1.0" Stroke. Procution Tool | $970.00 | |
| 160-SP/M39225 | PNEUMATIC RIVNUT INSTALLATION TOOL KIT, IMPERIAL | Includes 6-32, 8-32, 10-24, 10-32, 1/4-20, 5/16-18, 3/8-16 & 1/2-13 Thread sizes | $2695.00 | |
| 160-SP/M39226 | PNEUMATIC RIVNUT INSTALLATION TOOL KIT, METRIC | Includes M4, M5, M6, M8, M10 & M12 Thread sizes | $2695.00 |
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| D-700-RN | COMBINATION RIVETER/NUTSETTER | HAND RIVETER/NUTSETTER - INSTALLS 3/32 TO 1/4 DIAMETER RIVETS, INCLUDES 6-32,8-32, 10-32 AND 1/4-20 PULL-UP STUDS & ANVILS. ADDTIONAL SIZES CAN BE PURCHASED. | $2495.00 | |
| $0.00 | ||||
| $0.00 | ||||
| $0.00 | ||||
| $0.00 |
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| 5095L | 1" EXTENDED LENGTH IMPACT WRENCH | 1200 lbs of Torque, 900 Blows per minute, 6" Extension | $1450.00 | |
| 5095 | 1" IMPACT WRENCH | 1200 lbs of Torque, 900 Blows per minute | $1364.00 | |
| 5350A | 1/2" QUIET COMPOSITE IMPACT | 450 ft lbs Torque, 1200 Blows per minute | $255.00 | |
| 5375A | 3/4" QUIET COMPOSITE IMPACT | 800 ft lbs of Torque, 300 Blows per minute | $644.00 | |
| 5338A | 3/8" QUIET COMPOSITE IMPACT | 250 ft lbs Torque, 900 Blows per minute | $243.00 |
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| 5445RKL | AIR DRILL, 3/8" KEYLESS CHUCK, 1800 RPM | Reversible | $188.00 | |
| 5440KL | AIR DRILL, 3/8" KEYLESS CHUCK, 2300 RPM | Non-reversible | $169.00 | |
| 5450RKL | AIR DRILL, 3/8" KEYLESS CHUCK, 550 RPM | Reversible | $188.00 |
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| 5564A | CUT-OFF TOOL | 21,000 RPM, 3" Wheel Size | $98.00 |
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| 5300A | RECIPROCATING AIR SAW | 10,000 Strokes per minute | $244.00 |
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| 5272A | RIVET HAMMER, 401 SHANK | 4800 Blows per minute | $95.00 | |
| 5273A | RIVET HAMMER, 401 SHANK | 3200 Blows per minute | $112.00 |
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| 5265 | RIGHT ANGLE SANDER, 5" | 7000 RPM, 5/8"-11 Spindle | $350.00 |
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| 5268 | RIGHT ANGLE GRINDER, 4-1/2" | 12,000 RPM, 5/8"-11 Spindle | $350.00 |
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| 5055A | 90 DEGREE DIE GRINDER | 20,000 RPM, 1/4" Collet | $125.00 | |
| 5979A | PENCIL DIE GRINDER | 70,000 RPM, 1/8" Collet | $175.00 | |
| 5054A | STRAIGHT DIE GRINDER | 22,000 RPM, 1/4" Collet | $104.00 |
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| PT-100-C KIT | AIR-HYDRAULIC RIVETER KIT | 4000 lbs Pulling Force, 3/32" to 1/4" diamter Blind Rivets, 90 to 120 PSI operating Air Pressure | $545.00 |
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| F-3001A | 12v BATTERY PACK | BATTERY PACK, NICKEL/METAL 12V, FOR PT-4000 AND PT-3000 CORDLESS RIVETER | $194.50 | |
| F-4500A | 18v LI-ION BATTERY PACK | 18V LI-ION BATTERY PACK, SLIDE-ON MODEL FOR PT-4500 RIVETERS | $275.00 | |
| 7251138 | BATTERY CHARGER | 14.4V Li-Ion BATTERY CHARGER, 110V | $156.00 | |
| $0.00 | ||||
| PT-4000-C KIT | CORDLESS RIVETER KIT | The PT-4000-C Cordless Blind Riveter offers the sheet metal technician capability for installation of most all 1/4” diameter blind rivets. The PT-4000-C develops in excess of 4,000 lbs of pulling force over more than 3/4” of stroke. The PT-4000-C Kit comes with 4 nosepieces allowing the user to install the most popular rivet types: Huck Magna-Lok®, Avdel Interlock®, Olympic Bulb-Tite® as well as all standard Pop type rivets. Kit includes: Riveter, 4 nosepieces, 1 2.6 Ah, 14.4 VDC Lithium Ion (Li-Ion) Batterypack, charger and carrying case. Additional nosepieces for Monobolts® and Bulb-Tites® can be added. | $2033.00 | |

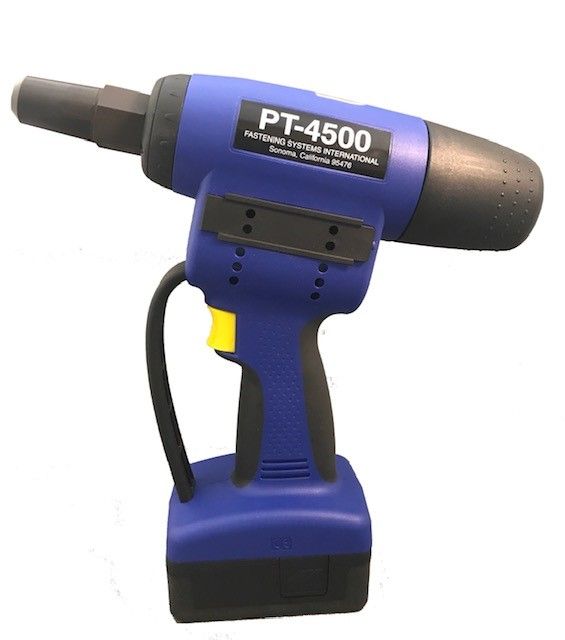

| PT-4500-G KIT | CORDLESS RIVETER KIT | Installs 3/16" & 1/4" Blind Rivets. Production/Industrial Speed | $2275.00 | |
| F-3500A | DAUL VOLTAGE CHARGER | BATTERY CHARGER, FOR F-4500A BATTERY PACK, DUAL VOLTAGE 110/220 | $250.00 |
FSI PULL-UP STUDS
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|

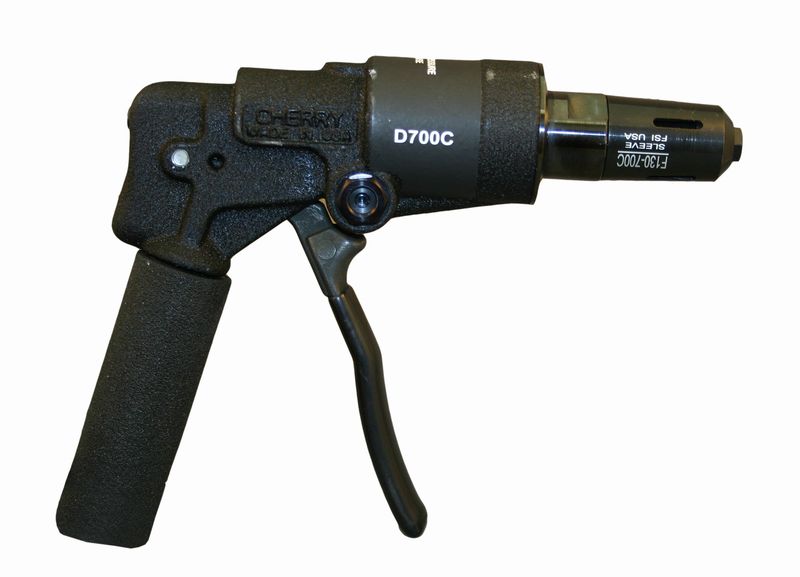

| F373 | 1/4-20 PULL UP STUD | 1/4-20 PULL UP STUD FOR D-100, D-180 AND D-700C | $20.15 | |
| F363 | 1/4-28 PULL UP STUD | 1/4-28 PULL UP STUD FOR D-100, D-180 AND D-700C | $20.15 | |
| F372 | 10-24 PULL UP STUD | 10-24 PULL UP STUD FOR D-100, D-180 AND D-700C | $20.15 | |
| F362 | 10-32 PULL UP STUD | 10-32 PULL UP STUD FOR D-100, D-180 AND D-700C | $20.15 | |
| F387 | 10MM PULL UP STUD | 10MM PULL UP STUD FOR D-100, D-180 AND D-700C | $27.50 | |
| F375 | 3/8-16 PULL UP STUD | 3/8-16 PULL UP STUD FOR D-100, D-180 AND D-700C | $20.15 | |
| F376 | 3/8-24 PULL UP STUD | 3/8-24 PULL UP STUD FOR D-100, D-180 AND D-700C | $42.00 | |
| F382 | 3MM PULL-UP STUD | 3MM PULL UP STUD FOR D-100, D-180 AND D-700C | $25.00 | |
| F383 | 4MM PULL UP STUD | 4MM PULL UP STUD FOR D-100, D-180 AND D-700C | $25.00 | |
| F374 | 5/16-18 PULL UP STUD | 5/16-18 PULL UP STUD FOR D-100, D-180 AND D-700C | $20.15 | |
| F377 | 5/16-24 PULL UP STUD | 5/16-24 PULL UP STUD FOR D-100, D-180 AND D-700C | $20.15 | |
| F384 | 5MM PULL UP STUD | 5MM PULL UP STUD FOR D-100, D-180 AND D-700C | $25.00 | |
| F380 | 6MM PULL UP STUD | 6MM PULL UP STUD FOR D-100, D-180 AND D-700C | $25.00 | |
| F361 | 8-32 PULL UP STUD | 8-32 PULL UP STUD FOR D-100, D-180 AND D-700C | $20.15 | |
| F386 | 8MM PULL UP STUD | 8MM PULL UP STUD FOR D-100, D-180 AND D-700C | $25.00 | |
| F360 | PULL-UP STUD | 6-32 PULL-UP STUD | $20.15 |
FSI ANVILS FOR PULL-UP STUDS
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| F365 | #10/5MM ANVIL | #10/5MM ANVIL FOR THE F362, F372 OR F384 PULL-UP STUD | $15.50 | |
| F176 | #10/5MM TSN ANVIL | #10/5MM TSN ANVIL FOR THE F362, F372 OR F384 PULL-UP STUD | $15.50 | |
| F366 | 1/4/6MM ANVIL | 1/4/6MM ANVIL FOR THE F363, F373 OR F380 PULL-UP STUD | $15.50 | |
| F177 | 1/4/6MM TSN ANVIL | 1/4/6MM TSN ANVIL FOR THE F363, F373 OR F388 PULL-UP STUD | $15.50 | |
| F379 | 3/8/10MM ANVIL | 3/8/10MM ANVIL FOR THE F375, F376 OR F387 PULL-UP STUD | $15.50 | |
| F378 | 5/16/8MM ANVIL | 5/16/8MM ANVIL FOR THE F374, F377 OR F386 PULL-UP STUD | $15.50 | |
| F367 | 6-32/3MM ANVIL | 6-32/3MM ANVIL FOR THE F360 PULL-UP STUD | $15.50 | |
| F364 | 8-32/4MM ANVIL | 8-32/4MM ANVIL FOR THE F361 OR F383 PULL-UP STUD | $15.50 |
FSI SPARE PARTS
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| F169 | 1/4" MONOBOLT NOSPIECE | 1/4" MONOBOLT NOSEPIECE FOR D100, PT-100, D-700C, PT-4000 & PT-4500 TOOLS | $63.50 | |
| F142 | 1/4" NOSEPIECE | 1/4" NOSEPIECE FOR D100, PT-100, D-700C, PT-4000 & PT-4500 TOOLS | $12.00 | |
| F159 | 1/8" NOSPIECE | 1/8" NOSEPIECE FOR D100, PT-100, D-700C, PT-4000 & PT-4500 TOOLS | $12.00 | |
| F122-A | 2-PIECE JAWS | 2-PIECE JAWS SET FOR ALL FSI RIVETERS. | $20.00 | |
| F123 | 3-PIECE JAW SET | 3-PIECE JAW SET FOR ALL FSI RIVETERS | $20.00 | |
| F168 | 3/16" MONOBOLT NOSEPIECE | 3/16" MONOBOLT NOSEPIECE FOR D100, PT-100, D-700C, PT-4000 & PT-4500 TOOLS | $63.50 | |
| F156 | 3/32-1/8 PULL-THRU NOSEPIECE | 3/32-1/8" NOSEPIECE FOR D100, PT-100, D-700C, PT-4000 & PT-4500 TOOLS | $12.00 | |
| F143 | 5/32-3/16 NOSEPIECE | 5/32-3/16" NOSEPIECE FOR D100, PT-100, D-700C, PT-4000 & PT-4500 TOOLS | $12.00 | |
| F3126 | Jaw Holder with Flats | Jaw holder for the PT-3000, PT-4000 and the PT-4500 | $31.00 | |
| F170-A | MASTER SHAFT FOR PULL-UP STUDS | MASTER SHAFT FOR PULL UP STUDS. USE WITH D-100 & D-700C TOOLS. | $25.00 | |
| F171 | TURN NUT | TURN NUT, USE WITH F170-A MASTER SHAFT | $10.00 |
FSI MILITARY/AEROSAPCE TOOL KITS
| Part Number | Description | Technical | Unit Price | Quantity* |
|---|---|---|---|---|
| D-100-MIL-1 | Hand Hydraulic Riveter Kit | The D-100-MIL-1 has become very popular with commercial airlines, private airplane and helicopter fleet owners, as well as aerospace vehicle manufacturers’ field modification and repair teams because of its wide capability and compact size. Relying on the D-180 (military/aerosapce version) riveter, this kit provides the ability to install all CherryMax® rivets (1/8”-1/4”), Pull-thru Nutplate rivets (3/32”-1/8”), all Pop® type rivets from 3/32” thru 1/4” diameter. In addition pull up studs and driving anvils provided for Rivnut® sizes 6-32, 8-32, 10-32, 1/4-28, 10-24, 1/4-20, 5/16-18 and 3/8-16 (up to three rad). An adapter is included to permit the tool to be used with the Right Angle, Offset and Extended Straight pulling heads for CherryMax® and Huck-Clinch® blind rivets. | $1605.00 | |
| D-100-MIL-2 | Hand Hydraulic Riveter Kit w/ CherryMax Pulling Heads | The D-100-MIL-2 riveter kit affords the aerospace/military technician the ability to install a wide variety of high break load blind fasteners with minimal wrist effort. Utilizing a patented, smart power valve system, the D-180 riveter contained in the kit permits installation of most all straight pull, single action blind rivets through 1/4” diameter. The Kit includes four threaded quick change rivet nosepieces for the D-180 riveter which has a unique two piece jaw system which allows the riveter to quickly be adapted to install 3/32” and 1/8” diameter pull thru nut plate rivets, as well as any CherryMax® (NAS9300), Huck Clinch ®, Allmax® (M7885), SuperMax®, Cherry SST®, Huck Max® and most CherryMax® “AB” rivets. This kit includes the special Right angle, Offset and extended straight CherryMax pulling heads. | $3362.00 |
